SPECIFICATIONS

Battery Included: Yes

Model Number: NF-916

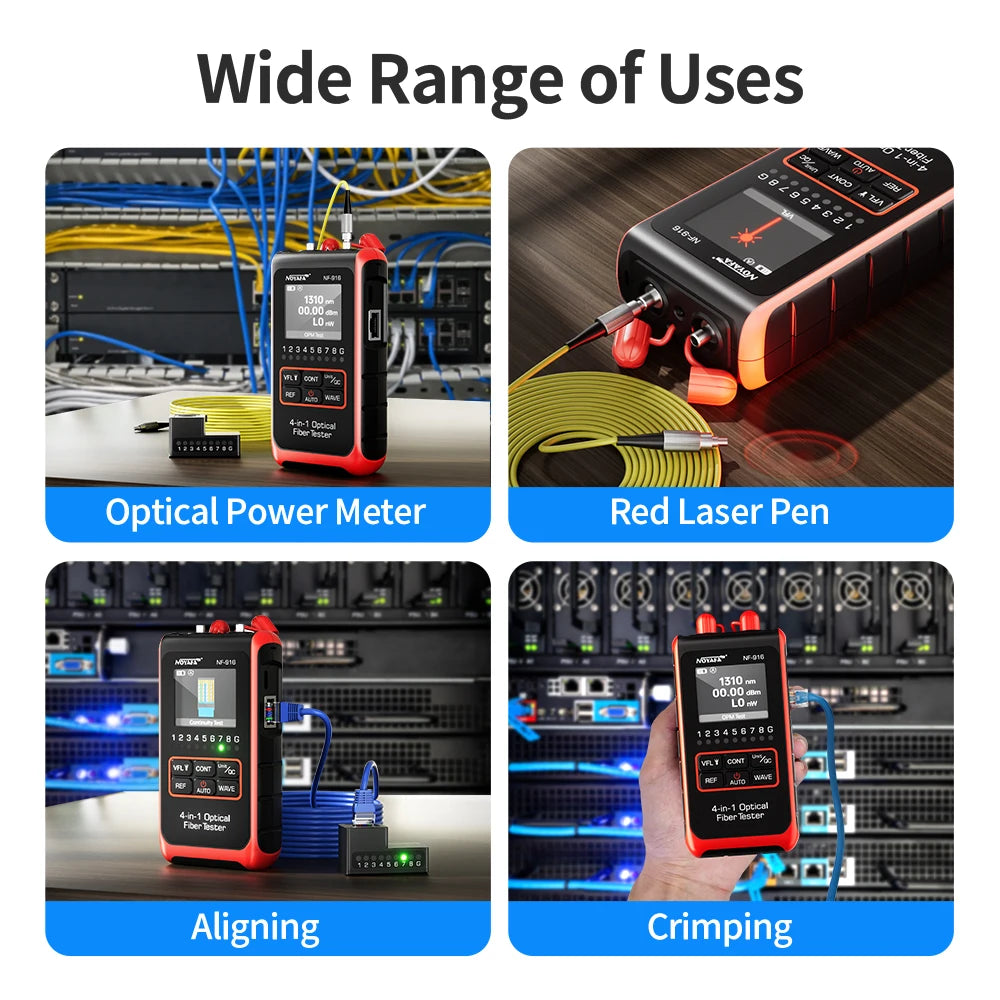

Product Function:

1. Optical Power Meter Function

a). Optical power measurement: supports 850/980/1310/1490/1550/1625nm wavelength

b). Unit switching: dBm or mW/uW/nW

c). REF reference

d). Optical power frequency test: can identify light sources with 270Hz, 1KHz, and 2KHz frequencies.

2. Cable Continuity Testing:Used to detect line sequence, short circuit, open circuit, crossover, etc. of network cables, and display the results in the form of line sequence lights and the screen.

3. Red Light Function: Supports 3 modes of "constant light, slow flash, fast flash".

4. Crystal Head Crimp Test Function:Check whether the crystal head is crimped well.

Product Description:

Product Name: Optical Power Meter

Type: NF-916

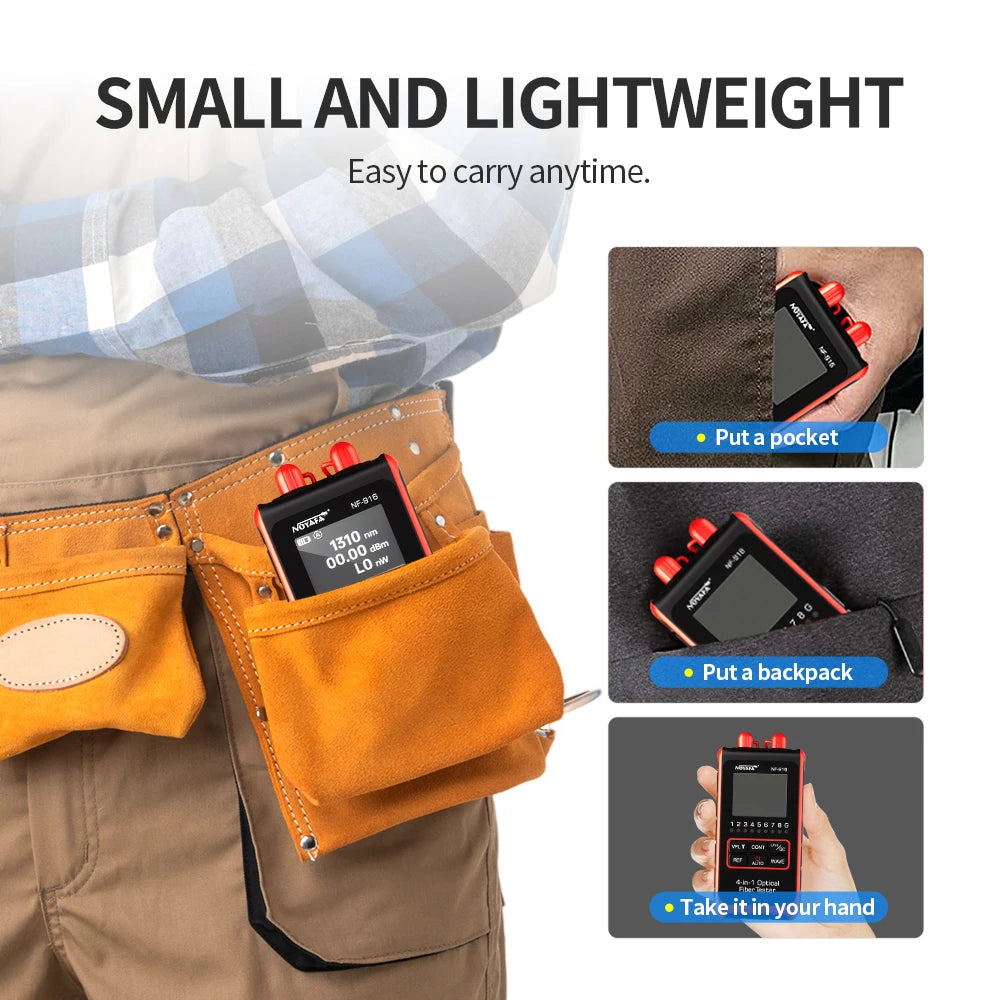

Dimension(LxWxD): 127x61x32mm

Display: Color screen

Optical power measurement: 850/980/1310/1490/1550/1625nm

Automatic shutdown: 30 minutes

Lighting function: Yes

Charging method: Type-C charging, 3.7V lithium battery
